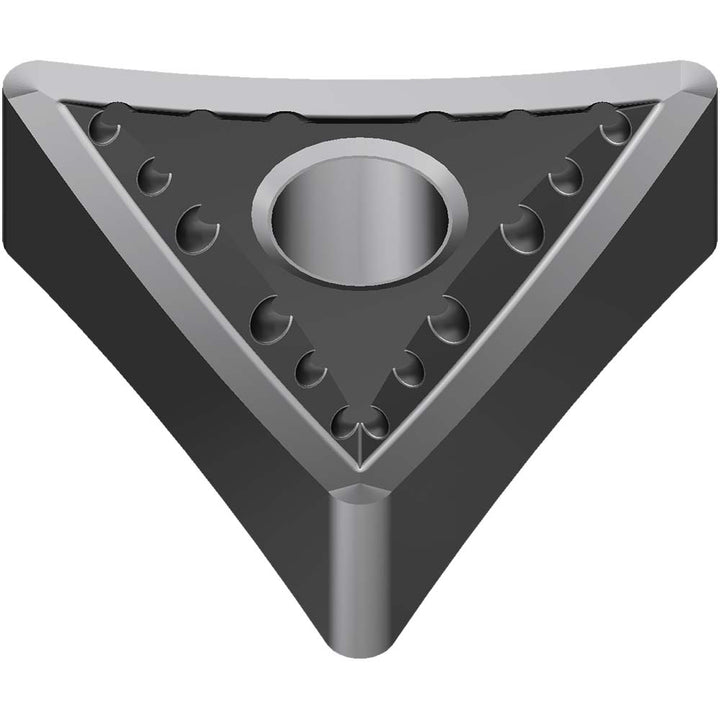

TNMG160404N-UP Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7348

Sumitomo

TNMG160404N-UP Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7348

MFR# 19P7348ISO/ANSI# TNMG160404Series TN

$10.07List $12.91 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeAC8025P
MaterialCarbide
CoatingCoated

Description

The Sumitomo 19P7348 is a TNMG160404N-UP carbide indexable insert, grade AC8025P, Coated coated. Suited for steel.

Specifications

Ansi insert codeTNMG331
Ansi size code331
Chip breakerEUP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/64
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness
Hole diameter0.1500
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code331
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG160404N-UP
Iso insert codeTNMG160404
Iso size code160404
Manufacturer gradeAC8025P
Multi use toolNo
Primary workpiece materialSteel
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
