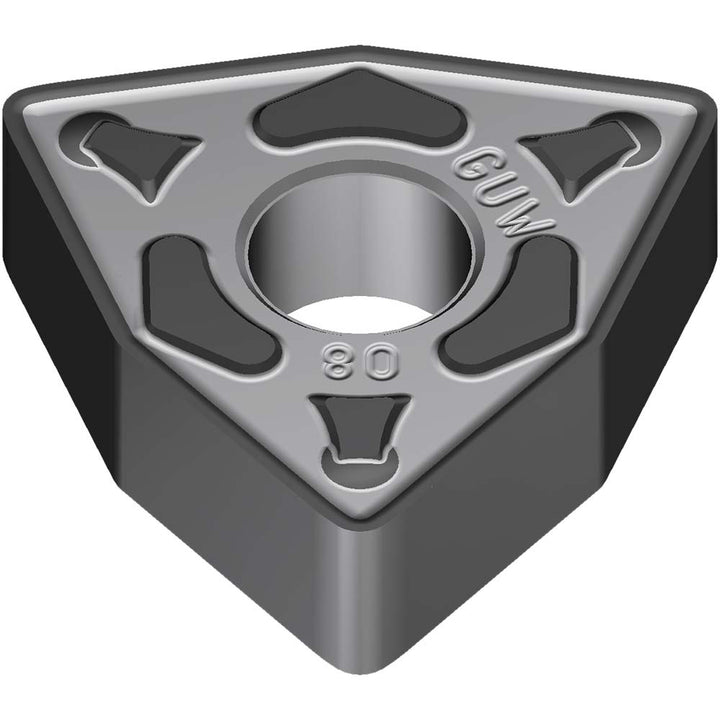

WNMG080412N-GUW Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7827

Sumitomo

WNMG080412N-GUW Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7827

MFR# 19P7827ISO/ANSI# WNMG080412Series TN

$12.09List $15.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeAC8025P
MaterialCarbide
CoatingCoated

Description

The Sumitomo 19P7827 is a WNMG080412N-GUW carbide indexable insert, grade AC8025P, Coated coated. Suited for steel.

Specifications

Ansi insert codeWNMG433
Ansi size code433
Chip breakerEGUW
Chip breaker operationWiper - Medium Machining
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in3/64
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code433
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080412N-GUW
Iso insert codeWNMG080412
Iso size code080412
Manufacturer gradeAC8025P
Multi use toolNo
Primary workpiece materialSteel
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
Wiper edgeYes
