Sumitomo

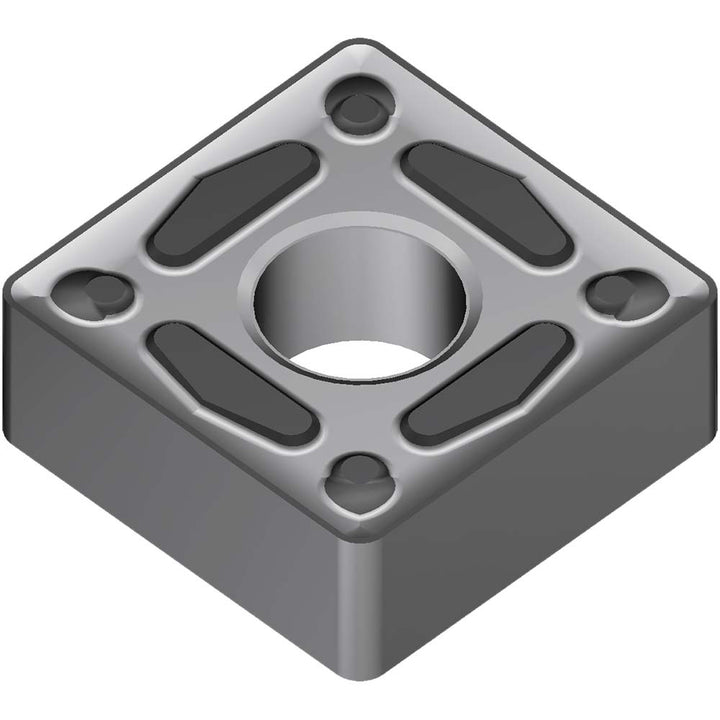

SNMG150612N-UG Carbide Insert, Grade AC8025P, Absotech - Sumitomo 19P7858
MFR# 19P7858ISO/ANSI# SNMG150612Series SN
$17.71List $22.32
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeS - Square
GradeAC8025P
MaterialCarbide
CoatingAbsotech
Description
The Sumitomo 19P7858 is a SNMG150612N-UG carbide indexable insert, grade AC8025P, Absotech coated. Suited for steel.
Specifications
Ansi insert codeSNMG543
Ansi size code543
Chip breakerENG
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishAbsotech
Coating processCVD
Corner radius in3/64
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness
Hole diameter0.2500
Included angle90
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in5/8
Insert materialCarbide
Insert shapeS - Square
Insert size code543
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG150612N-UG
Iso insert codeSNMG150612
Iso size code150612
Manufacturer gradeAC8025P
Multi use toolNo
Primary workpiece materialSteel
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
Width in5/8
