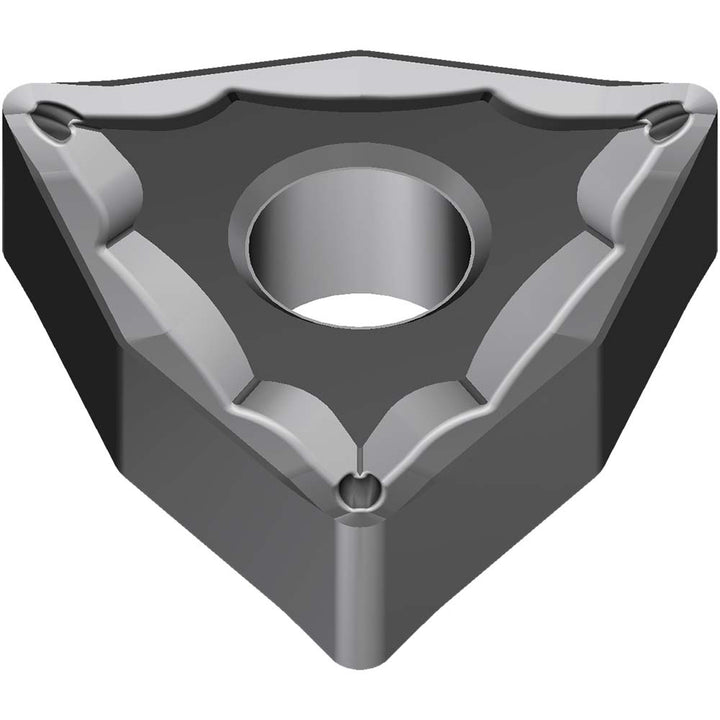

WNMG080404N-SU Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7APF

Sumitomo

WNMG080404N-SU Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7APF

MFR# 19P7APFISO/ANSI# WNMG080404Series TN

$12.93List $16.58 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeAC8025P
MaterialCarbide
CoatingCoated

Description

The Sumitomo 19P7APF is a WNMG080404N-SU carbide indexable insert, grade AC8025P, Coated coated. Suited for steel.

Specifications

Ansi insert codeWNMG431
Ansi size code431
Chip breakerESU
Chip breaker operationFinishing; Light Machining
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/64
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code431
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080404N-SU
Iso insert codeWNMG080404
Iso size code080404
Manufacturer gradeAC8025P
Multi use toolNo
Primary workpiece materialSteel
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
