Sumitomo

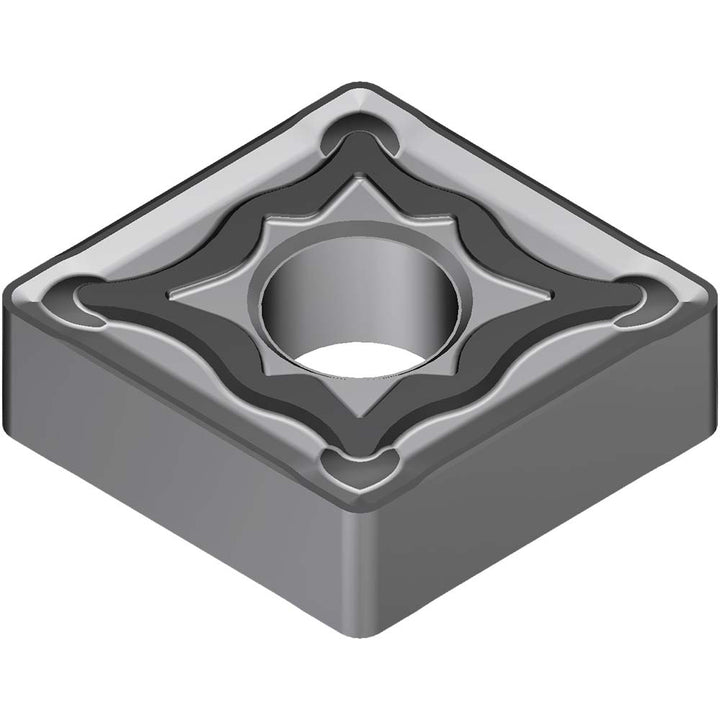

CNMG120408N-UX Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7AVH
MFR# 19P7AVHISO/ANSI# CNMG120408N-UXSeries CN
$12.93List $16.58
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC8025P
MaterialCarbide
CoatingCoated
Description
The Sumitomo 19P7AVH is a CNMG120408N-UX carbide indexable insert, grade AC8025P, Coated coated. Suited for steel.
Specifications
Chip breakerEUX
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/32
Full radiusNo
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408N-UX
Manufacturer gradeAC8025P
Multi use toolNo
Primary workpiece materialSteel
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
