Sumitomo

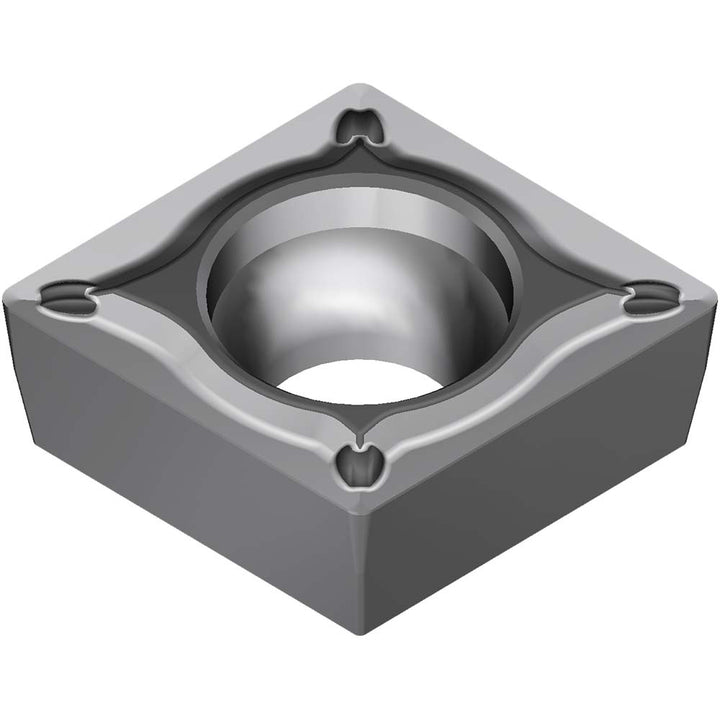

CCMT060202N-SU Solid Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7BPB
MFR# 19P7BPBISO/ANSI# CCMT060202N-SUSeries CC
$9.51List $12.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeAC8025P
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 19P7BPB is a CCMT060202N-SU solid carbide indexable insert, grade AC8025P, Coated coated. Suited for steel.
Specifications
Ansi codeCCMT21.50.5ESU
Chip breakerESU
Clearance codeC
Coating finishCoated
Coating processCVD
Corner radius0.0078
Full radiusNo
Hole diameter0.1102
Included angle80.0
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2520
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code21.50.5
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060202N-SU
Manufacturer gradeAC8025P
Multi use toolNo
Primary workpiece materialSteel
RakePositive
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeM
