Sumitomo

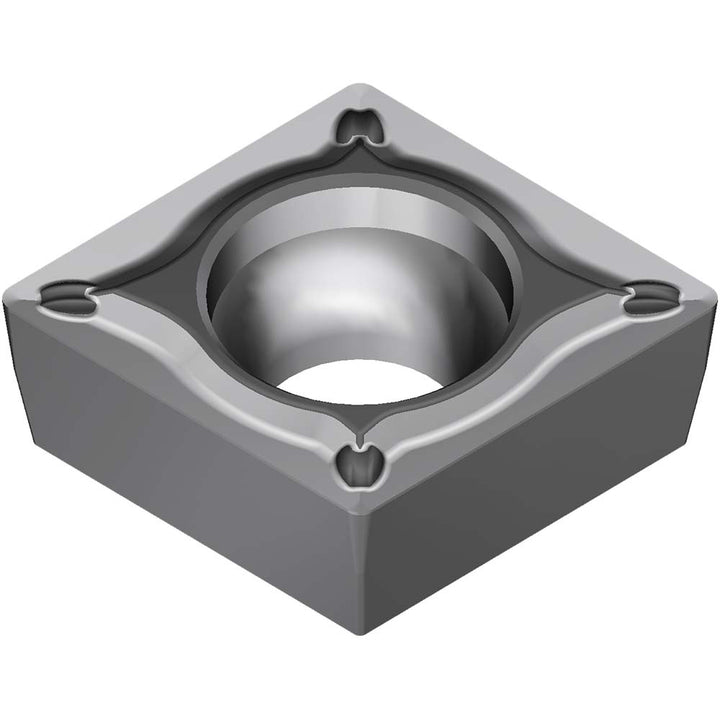

CCMT060208N-SU Solid Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7BPD
MFR# 19P7BPDISO/ANSI# CCMT060208N-SUSeries CC
$9.51List $12.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeAC8025P
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 19P7BPD is a CCMT060208N-SU solid carbide indexable insert, grade AC8025P, Coated coated. Suited for steel.
Specifications
Ansi codeCCMT21.52ESU
Chip breakerESU
Clearance codeC
Coating finishCoated
Coating processCVD
Corner radius in1/32
Full radiusNo
Hole diameter0.1102
Included angle80.0
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2520
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code21.52
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060208N-SU
Manufacturer gradeAC8025P
Multi use toolNo
Primary workpiece materialSteel
RakePositive
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeM
