Sumitomo

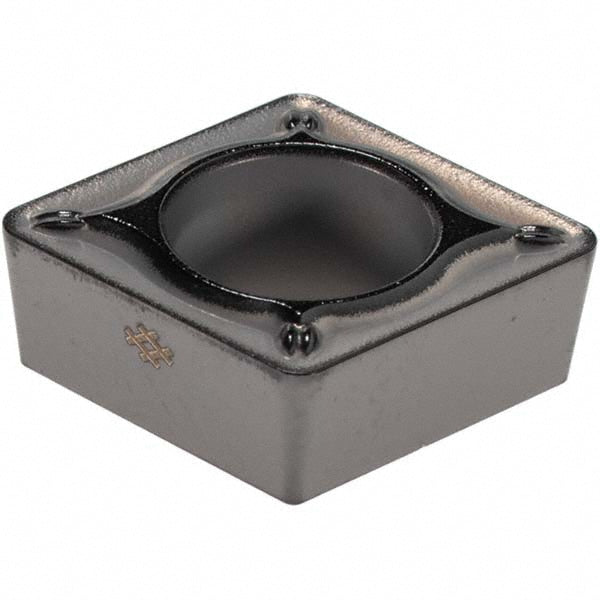

CCMT09T308N-SU Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7BPF
MFR# 19P7BPFISO/ANSI# CCMT09T308N-SUSeries CC
$11.74List $15.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC8025P
MaterialCarbide
CoatingCoated
Description
The Sumitomo 19P7BPF is a CCMT09T308N-SU carbide indexable insert, grade AC8025P, Coated coated. Suited for steel.
Specifications
Chip breakerESU
Clearance codeC
Coating finishCoated
Coating processCVD
Corner radius in1/32
Full radiusNo
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialCarbide
Insert shapeDiamond
Insert size code32.52
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T308N-SU
Manufacturer gradeAC8025P
Multi use toolNo
Primary workpiece materialSteel
RakePositive
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeM
