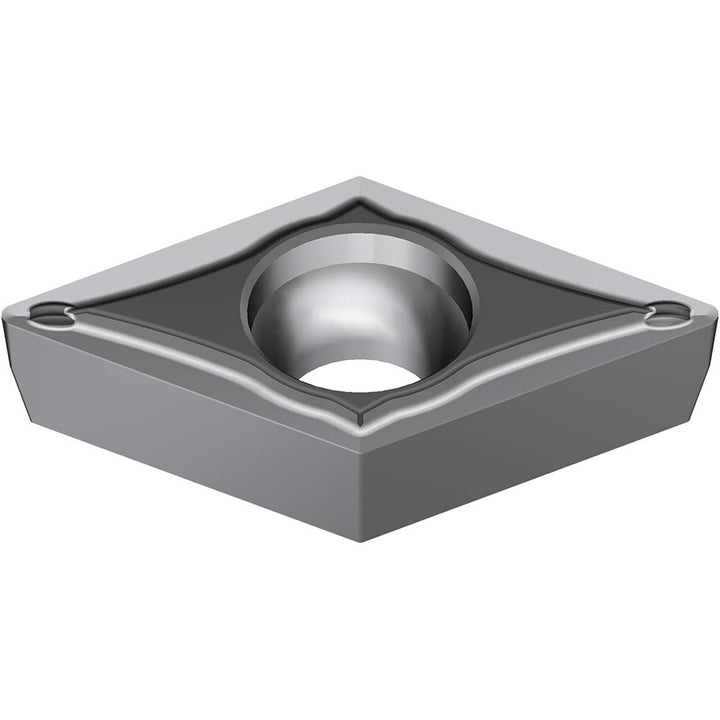

DCMT11T308N-SU Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7BPL

Sumitomo

DCMT11T308N-SU Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7BPL

MFR# 19P7BPLISO/ANSI# DCMT11T308Series DC

$17.23List $22.10 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeAC8025P
MaterialCarbide
CoatingCoated

Description

The Sumitomo 19P7BPL is a DCMT11T308N-SU carbide indexable insert, grade AC8025P, Coated coated. Suited for steel.

Specifications

Ansi insert codeDCMT32.52
Ansi size code32.52
Chip breakerESU
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishCoated
Coating processCVD
Corner radius in1/32
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4567
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code32.52
Insert styleDCMT
Insert thickness in3/8
Iso codeDCMT11T308N-SU
Iso insert codeDCMT11T308
Iso size code11T308
Manufacturer gradeAC8025P
Multi use toolNo
Primary workpiece materialSteel
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
