Sumitomo

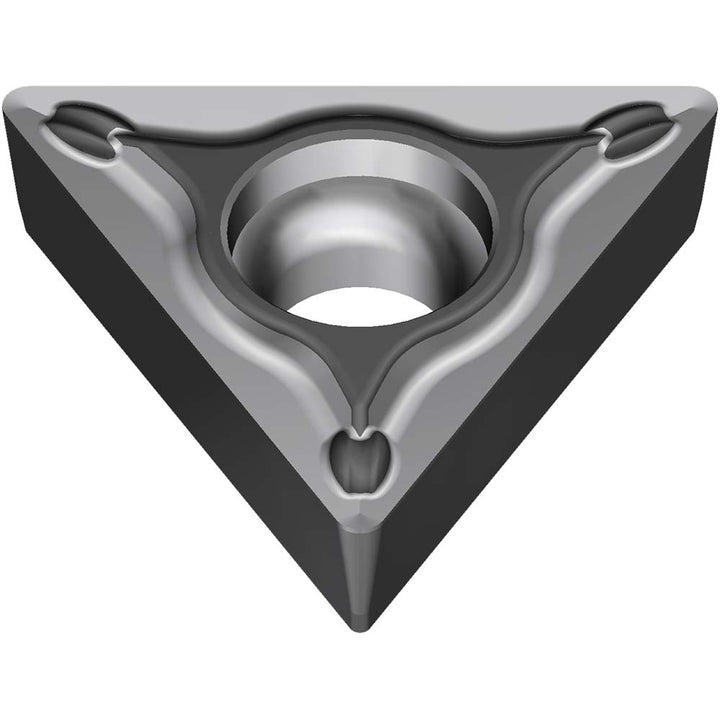

TCMT110204N-SU Solid Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7BPR
MFR# 19P7BPRISO/ANSI# TCMT110204N-SUSeries TC
$11.36List $14.56
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeAC8025P
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 19P7BPR is a TCMT110204N-SU solid carbide indexable insert, grade AC8025P, Coated coated. Suited for steel.
Specifications
Ansi codeTCMT21.51ESU
Chip breakerESU
Clearance codeC
Coating finishCoated
Coating processCVD
Corner radius in1/64
Full radiusNo
Hole diameter0.1102
Included angle60.0
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code21.51
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT110204N-SU
Manufacturer gradeAC8025P
Multi use toolNo
Primary workpiece materialSteel
RakePositive
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeM
