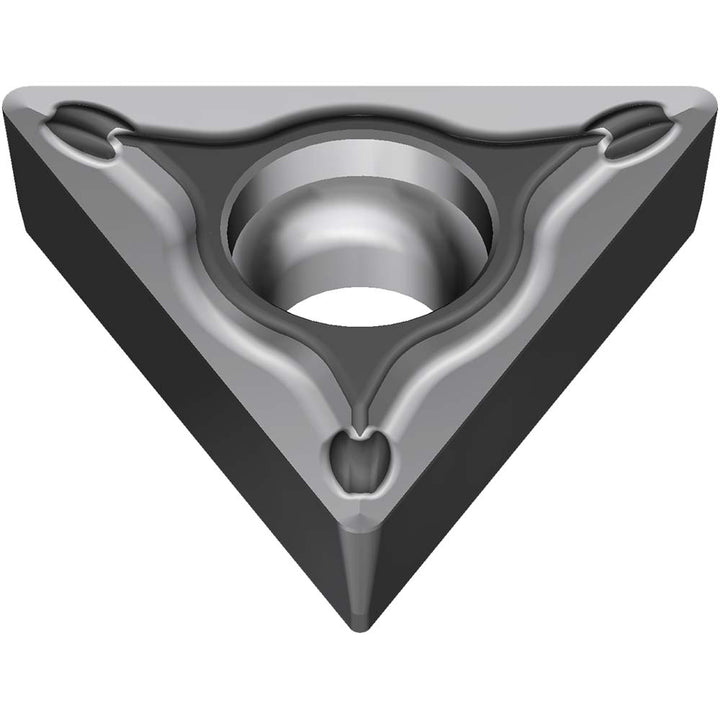

TCMT16T304N-SU Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7BPT

Sumitomo

TCMT16T304N-SU Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7BPT

MFR# 19P7BPTISO/ANSI# TCMT16T304Series TC

$14.55List $18.66 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeAC8025P
MaterialCarbide
CoatingCoated

Description

The Sumitomo 19P7BPT is a TCMT16T304N-SU carbide indexable insert, grade AC8025P, Coated coated. Suited for steel.

Specifications

Ansi insert codeTCMT32.51
Ansi size code32.51
Chip breakerESU
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishCoated
Coating processCVD
Corner radius in1/64
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness
Hole diameter0.1693
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code32.51
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT16T304N-SU
Iso insert codeTCMT16T304
Iso size code16T304
Manufacturer gradeAC8025P
Multi use toolNo
Primary workpiece materialSteel
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
