Sumitomo

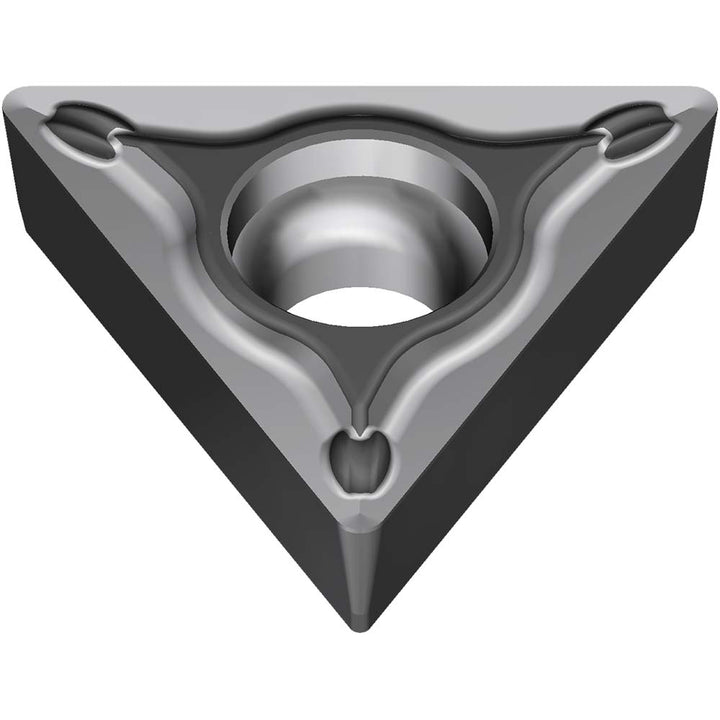

TCMT16T308N-SU Solid Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7BPU
MFR# 19P7BPUISO/ANSI# TCMT16T308N-SUSeries TC
$14.55List $18.66
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeAC8025P
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 19P7BPU is a TCMT16T308N-SU solid carbide indexable insert, grade AC8025P, Coated coated. Suited for steel.
Specifications
Ansi codeTCMT32.52ESU
Chip breakerESU
Clearance codeC
Coating finishCoated
Coating processCVD
Corner radius in1/32
Full radiusNo
Hole diameter0.1693
Included angle60.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6496
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code32.52
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT16T308N-SU
Manufacturer gradeAC8025P
Multi use toolNo
Primary workpiece materialSteel
RakePositive
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeM
