Sumitomo

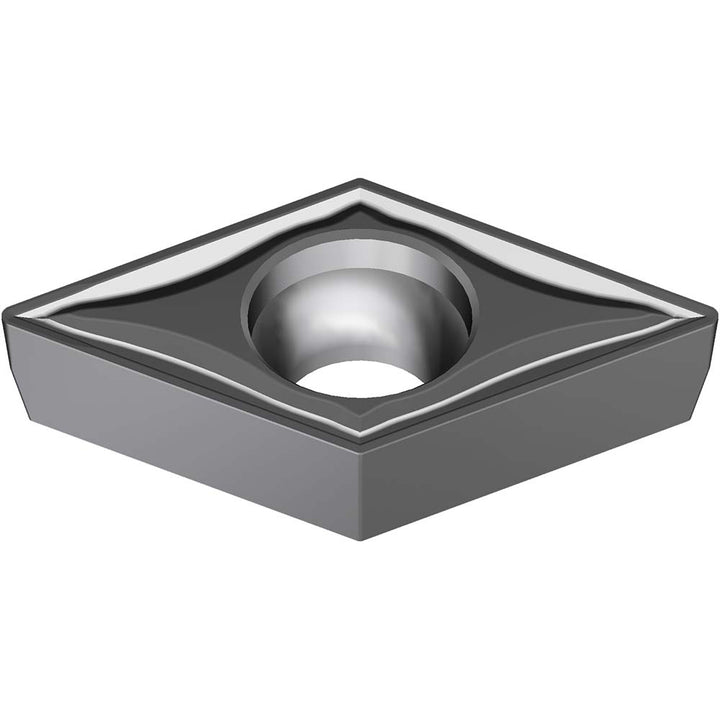

DCMT11T308N-MU Solid Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7BPY
MFR# 19P7BPYISO/ANSI# DCMT11T308N-MUSeries DC
$17.23List $22.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC8025P
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 19P7BPY is a DCMT11T308N-MU solid carbide indexable insert, grade AC8025P, Coated coated. Suited for steel.
Specifications
Ansi codeDCMT32.52EMU
Chip breakerEMU
Clearance codeC
Coating finishCoated
Coating processCVD
Corner radius in1/32
Full radiusNo
Hole diameter0.1732
Included angle55.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4567
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.52
Insert styleDCMT
Insert thickness in3/8
Iso codeDCMT11T308N-MU
Manufacturer gradeAC8025P
Multi use toolNo
Primary workpiece materialSteel
RakePositive
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeM
