Sumitomo

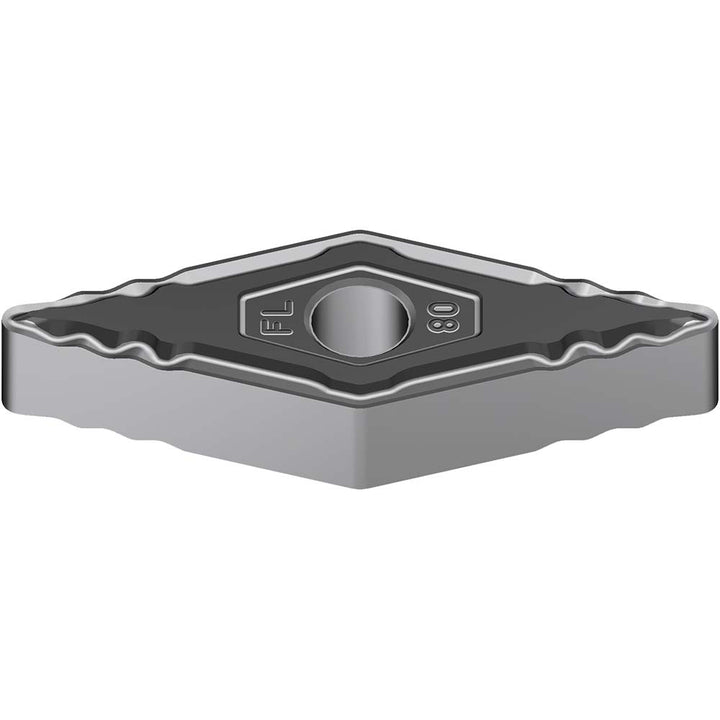

VNMG160408N-FL Solid Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7BTQ
MFR# 19P7BTQISO/ANSI# VNMG160408N-FLSeries VN
$19.37List $24.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC8025P
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 19P7BTQ is a VNMG160408N-FL solid carbide indexable insert, grade AC8025P, Coated coated. Suited for steel.
Specifications
Ansi codeVNMG332EFL
Chip breakerEFL
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/32
Full radiusNo
Hole diameter0.1500
Included angle35.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160408N-FL
Manufacturer gradeAC8025P
Multi use toolNo
Primary workpiece materialSteel
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
