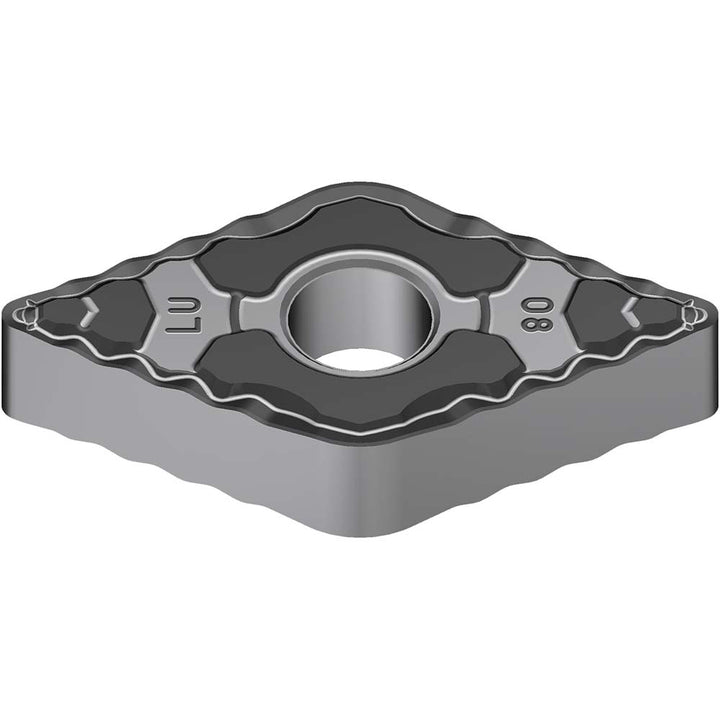

DNMG150408N-LU Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7BTU

Sumitomo

DNMG150408N-LU Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7BTU

MFR# 19P7BTUISO/ANSI# DNMG150408Series DN

$18.75List $24.04 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeAC8025P
MaterialCarbide
CoatingCoated

Description

The Sumitomo 19P7BTU is a DNMG150408N-LU carbide indexable insert, grade AC8025P, Coated coated. Suited for steel.

Specifications

Ansi insert codeDNMG432
Ansi size code432
Chip breakerELU
Chip breaker operationFinishing
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/32
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408N-LU
Iso insert codeDNMG150408
Iso size code150408
Manufacturer gradeAC8025P
Multi use toolNo
Primary workpiece materialSteel
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
