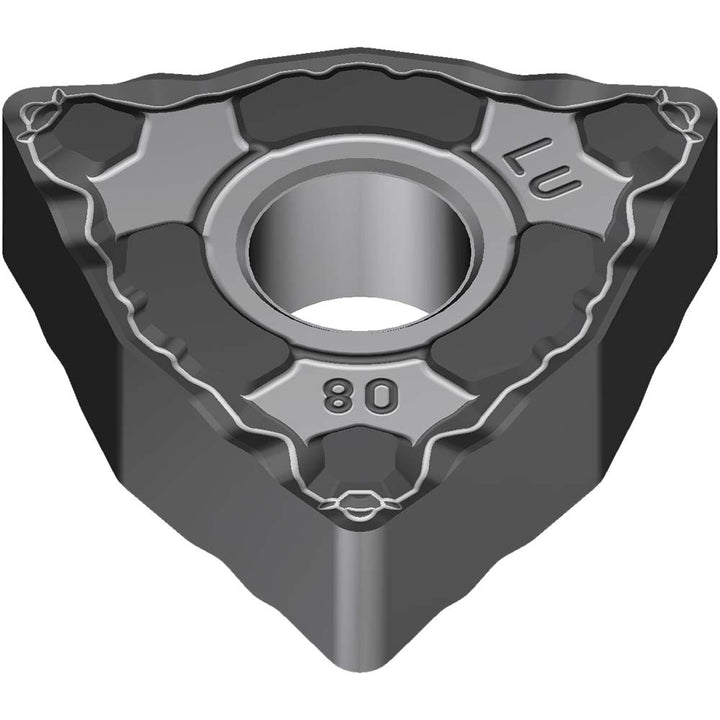

WNMG080408N-LU Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7BUD

Sumitomo

WNMG080408N-LU Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7BUD

MFR# 19P7BUDISO/ANSI# WNMG080402Series TN

$12.93List $16.58 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeAC8025P
MaterialCarbide
CoatingCoated

Description

The Sumitomo 19P7BUD is a WNMG080408N-LU carbide indexable insert, grade AC8025P, Coated coated. Suited for steel.

Specifications

Ansi insert codeWNMG432
Ansi size code432
Chip breakerELU
Chip breaker operationFinishing
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/32
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408N-LU
Iso insert codeWNMG080402
Iso size code080402
Manufacturer gradeAC8025P
Multi use toolNo
Primary workpiece materialSteel
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
