Sumitomo

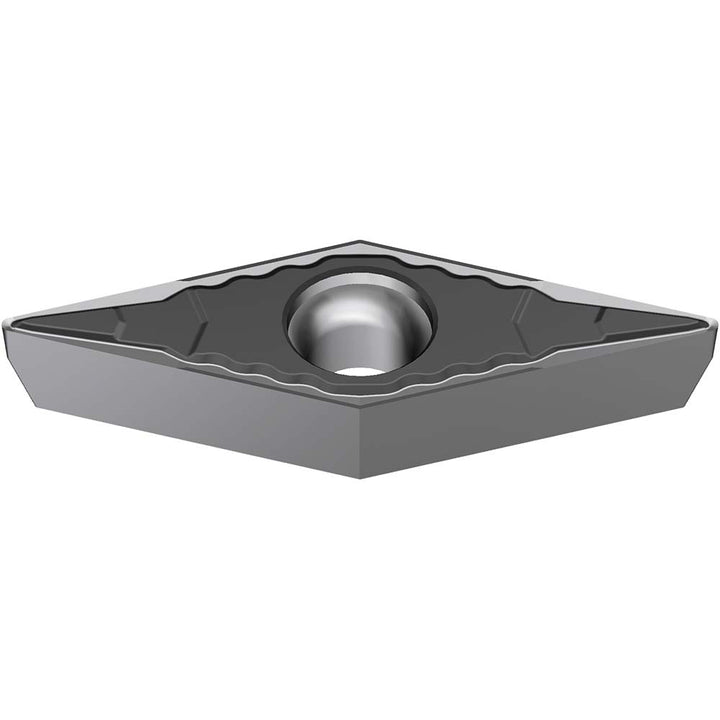

VBMT160404N-LU Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7BUY
MFR# 19P7BUYISO/ANSI# VBMT160404N-LUSeries VB
$28.09List $35.41
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC8025P
MaterialCarbide
CoatingCoated
Description
The Sumitomo 19P7BUY is a VBMT160404N-LU carbide indexable insert, grade AC8025P, Coated coated. Suited for steel.
Specifications
Chip breakerELU
Clearance codeB
Coating finishCoated
Coating processCVD
Corner radius in1/64
Full radiusNo
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6535
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT160404N-LU
Manufacturer gradeAC8025P
Multi use toolNo
Primary workpiece materialSteel
RakePositive
Relief angle5
StandardsANSI; ISO 13399
Tolerance codeM
