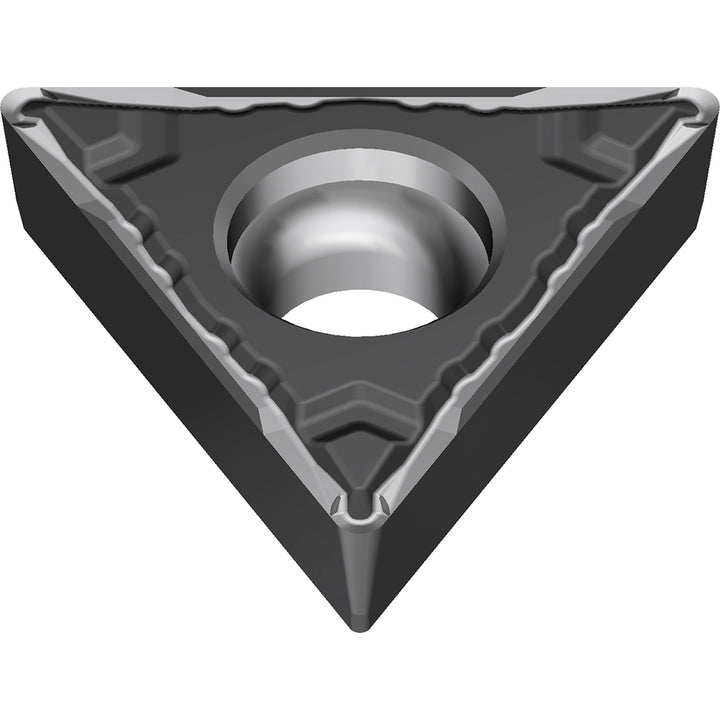

TCMT110204N-LU Carbide Insert, Grade AC8025P, Absotech - Sumitomo 19P7BVT

Sumitomo

TCMT110204N-LU Carbide Insert, Grade AC8025P, Absotech - Sumitomo 19P7BVT

MFR# 19P7BVTISO/ANSI# TCMT110204Cat# TCMT21.51ELU-AC8025PSeries AC8000P

$11.36List $14.56 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeAC8025P
MaterialCarbide
CoatingAbsotech

Description

The Sumitomo 19P7BVT is a TCMT110204N-LU carbide indexable insert, grade AC8025P, Absotech coated. Suited for steel.

Specifications

Ansi insert codeTCMT21.51
Ansi size code21.51
Chip breakerELU
Chip breaker operationFinishing
Clearance codeC
Coating finishAbsotech
Coating processCVD
Corner radius0.0157
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert holding methodScrew-On
Insert length0.4331
Insert materialCarbide
Insert shapeT - Triangle
Insert size code21.51
Insert styleTCMT
Insert thickness0.0937
Iso codeTCMT110204N-LU
Iso insert codeTCMT110204
Iso size code110204
Length range0.4000 - 0.5000
Manufacturers catalog numberTCMT21.51ELU-AC8025P
Manufacturer gradeAC8025P
Primary workpiece materialSteel
RakePositive
Relief angle7
Side clearancePositive
Tolerance codeM
