Sumitomo

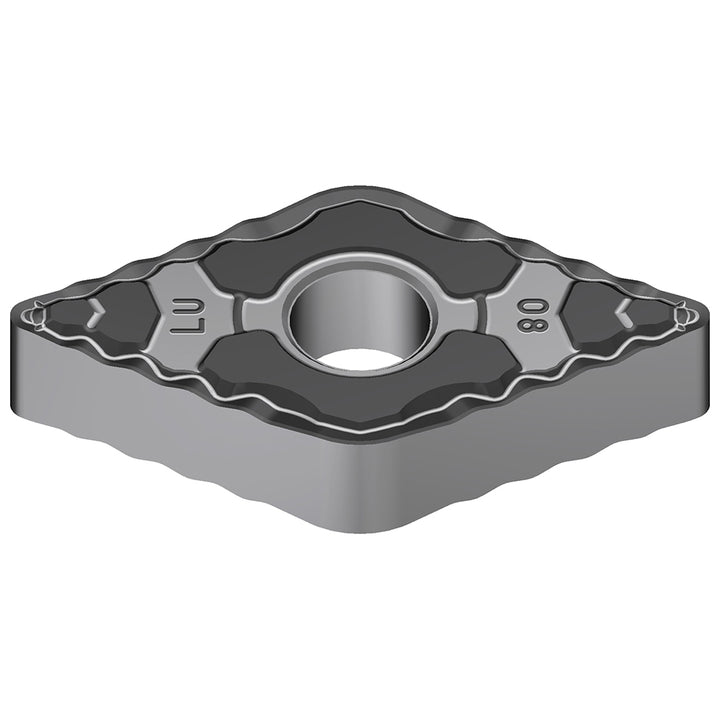

DNMG150402N-LU Carbide Insert, Grade AC8025P, Absotech - Sumitomo 19P7BWN
MFR# 19P7BWNISO/ANSI# DNMG150402N-LUCat# DNMG430.5ELU-AC8025PSeries AC8000P
$21.56List $27.17
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
GradeAC8025P
MaterialCarbide
CoatingAbsotech
Description
The Sumitomo 19P7BWN is a DNMG150402N-LU carbide indexable insert, grade AC8025P, Absotech coated. Suited for steel.
Specifications
Chip breakerELU
Clearance codeN
Coating finishAbsotech
Coating processCVD
Corner radius0.0079
Hole diameter0.2031
Included angle55
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCarbide
Insert size code430.5
Insert styleDNMG
Insert thickness0.1874
Iso codeDNMG150402N-LU
Length range0.6000 - 0.6500
Manufacturers catalog numberDNMG430.5ELU-AC8025P
Manufacturer gradeAC8025P
Primary workpiece materialSteel
RakeNegative
Relief angle0
Tolerance codeM
