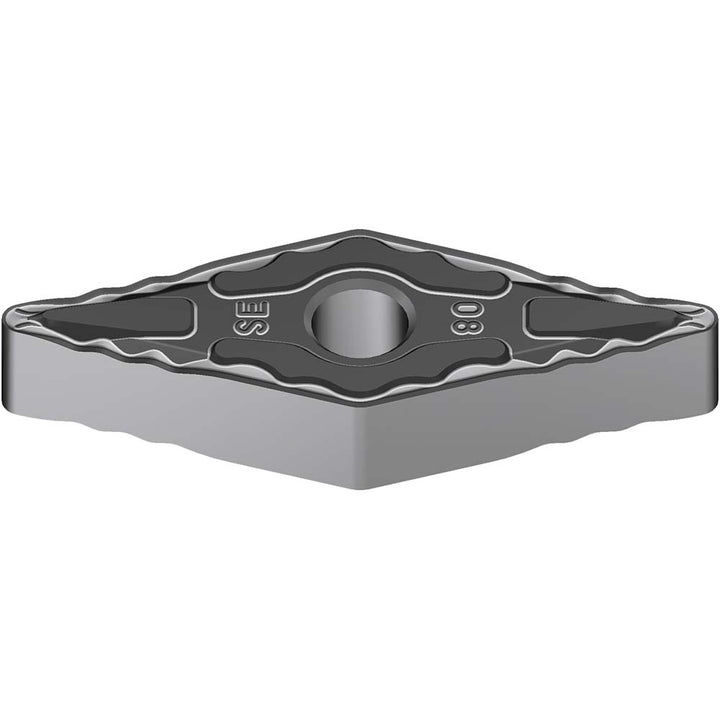

VNMG160408N-SE Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7CCE

Sumitomo

VNMG160408N-SE Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7CCE

MFR# 19P7CCEISO/ANSI# VNMG160408Series VN

$19.37List $24.84 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeAC8025P
MaterialCarbide
CoatingCoated

Description

The Sumitomo 19P7CCE is a VNMG160408N-SE carbide indexable insert, grade AC8025P, Coated coated. Suited for steel.

Specifications

Ansi insert codeVNMG332
Ansi size code332
Chip breakerESE
Chip breaker operationFinishing; Light Machining
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/32
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160408N-SE
Iso insert codeVNMG160408
Iso size code160408
Manufacturer gradeAC8025P
Multi use toolNo
Primary workpiece materialSteel
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
