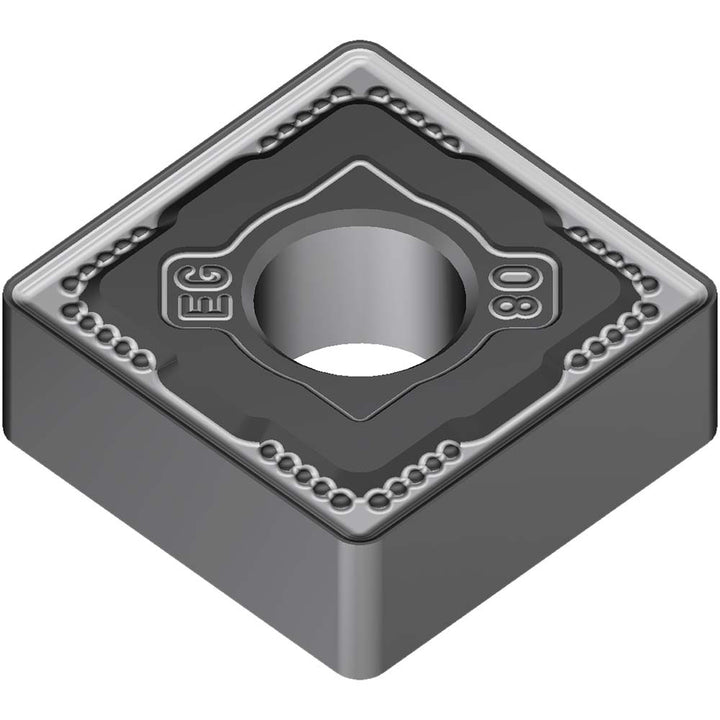

SNMG120408N-EG Carbide Insert, Grade AC8025P, Absotech - Sumitomo 19P7CGF

Sumitomo

SNMG120408N-EG Carbide Insert, Grade AC8025P, Absotech - Sumitomo 19P7CGF

MFR# 19P7CGFISO/ANSI# SNMG120408Series SN

$12.55List $16.10 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeS - Square
GradeAC8025P
MaterialCarbide
CoatingAbsotech

Description

The Sumitomo 19P7CGF is a SNMG120408N-EG carbide indexable insert, grade AC8025P, Absotech coated. Suited for steel.

Specifications

Ansi insert codeSNMG432
Ansi size code432
Chip breakerEEG
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishAbsotech
Coating processCVD
Corner radius in1/32
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle90
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeS - Square
Insert size code432
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG120408N-EG
Iso insert codeSNMG120408
Iso size code120408
Manufacturer gradeAC8025P
Multi use toolNo
Primary workpiece materialSteel
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
Width in1/2
