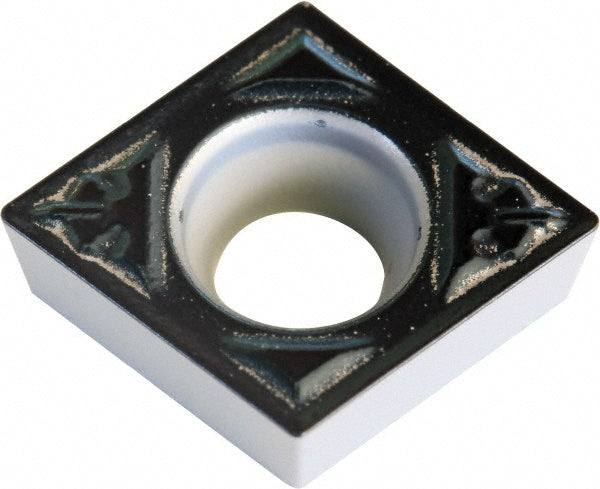

CCMT09T302N-LB Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7CKY

Sumitomo

CCMT09T302N-LB Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7CKY

MFR# 19P7CKYISO/ANSI# CCMT09T302Series CC

$10.97List $14.07 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC8025P
MaterialCarbide
CoatingCoated

Description

The Sumitomo 19P7CKY is a CCMT09T302N-LB carbide indexable insert, grade AC8025P, Coated coated. Suited for steel.

Specifications

Ansi insert codeCCMT32.50.5
Ansi size code32.50.5
Chip breakerELB
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishCoated
Coating processCVD
Corner radius0.0078
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.50.5
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T302N-LB
Iso insert codeCCMT09T302
Iso size code09T302
Manufacturer gradeAC8025P
Multi use toolNo
Primary workpiece materialSteel
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
