Sumitomo

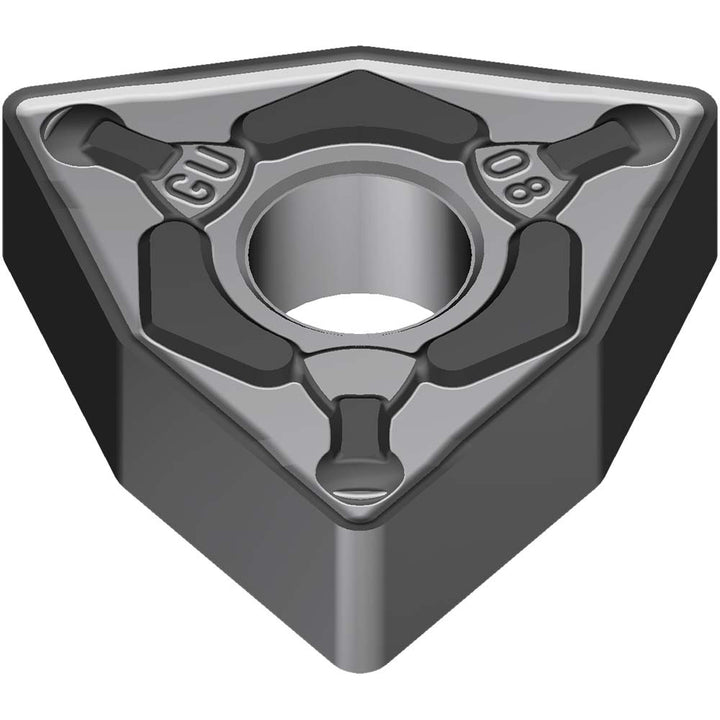

WNMG060408N-GU Solid Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7CRD
MFR# 19P7CRDISO/ANSI# WNMG060408N-GUSeries TN
$10.35List $13.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeAC8025P
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 19P7CRD is a WNMG060408N-GU solid carbide indexable insert, grade AC8025P, Coated coated. Suited for steel.
Specifications
Ansi codeWNMG332EGU
Chip breakerEGU
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/32
Full radiusNo
Hole diameter0.1500
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.2559
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code332
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG060408N-GU
Manufacturer gradeAC8025P
Multi use toolNo
Primary workpiece materialSteel
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
