Sumitomo

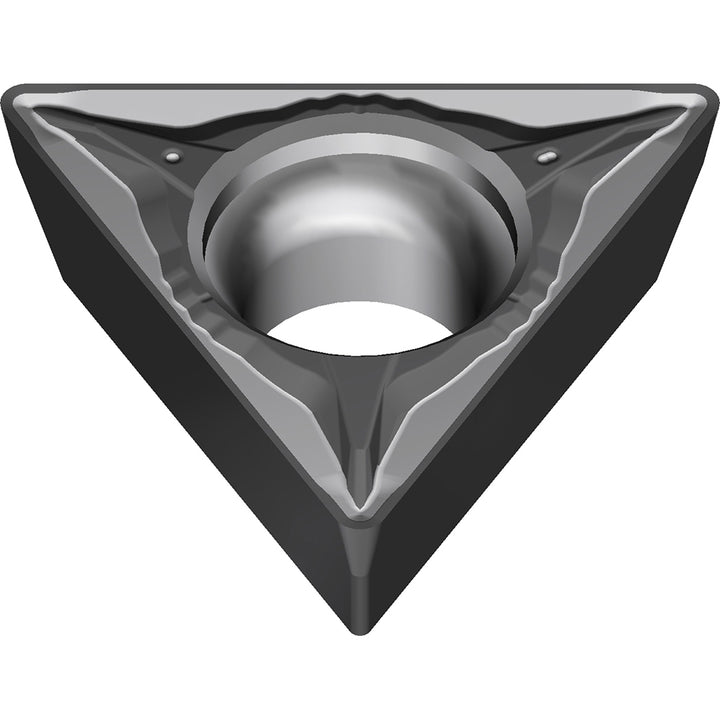

TPMT110304N-GU Carbide Insert, Grade AC8025P, Absotech - Sumitomo 19P7DDG
MFR# 19P7DDGISO/ANSI# TPMT110304N-GUCat# TPMT221EGU-AC8025PSeries AC8000P
$9.94List $12.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
GradeAC8025P
MaterialCarbide
CoatingAbsotech
Description
The Sumitomo 19P7DDG is a TPMT110304N-GU carbide indexable insert, grade AC8025P, Absotech coated. Suited for steel.
Specifications
Chip breakerEGU
Clearance codeP
Coating finishAbsotech
Coating processCVD
Corner radius0.0157
Hole diameter0.1339
Included angle60
Inscribed circle in1/4
Insert holding methodScrew-On
Insert length0.4331
Insert materialCarbide
Insert size code221
Insert styleTPMT
Insert thickness0.1252
Iso codeTPMT110304N-GU
Length range0.4000 - 0.5000
Manufacturers catalog numberTPMT221EGU-AC8025P
Manufacturer gradeAC8025P
Primary workpiece materialSteel
RakePositive
Relief angle11
Tolerance codeM
