Sumitomo

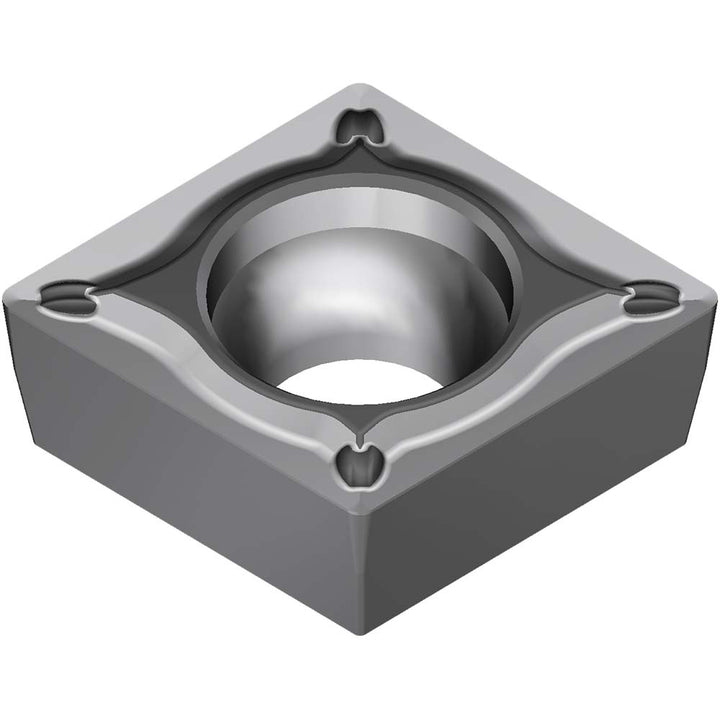

CPMT060204N-SU Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7W33
MFR# 19P7W33ISO/ANSI# CPMT060204N-SUSeries CPMT
$9.51List $12.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeAC8025P
MaterialCarbide
CoatingCoated
Description
The Sumitomo 19P7W33 is a CPMT060204N-SU carbide indexable insert, grade AC8025P, Coated coated. Suited for steel.
Specifications
Chip breakerESU
Clearance codeP
Coating finishCoated
Coating processCVD
Corner radius in1/64
Full radiusNo
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2520
Insert materialCarbide
Insert shapeDiamond
Insert size code21.5
Insert styleCPMT
Insert thickness in1/4
Iso codeCPMT060204N-SU
Manufacturer gradeAC8025P
Multi use toolNo
Primary workpiece materialSteel
RakePositive
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeM
