Sumitomo

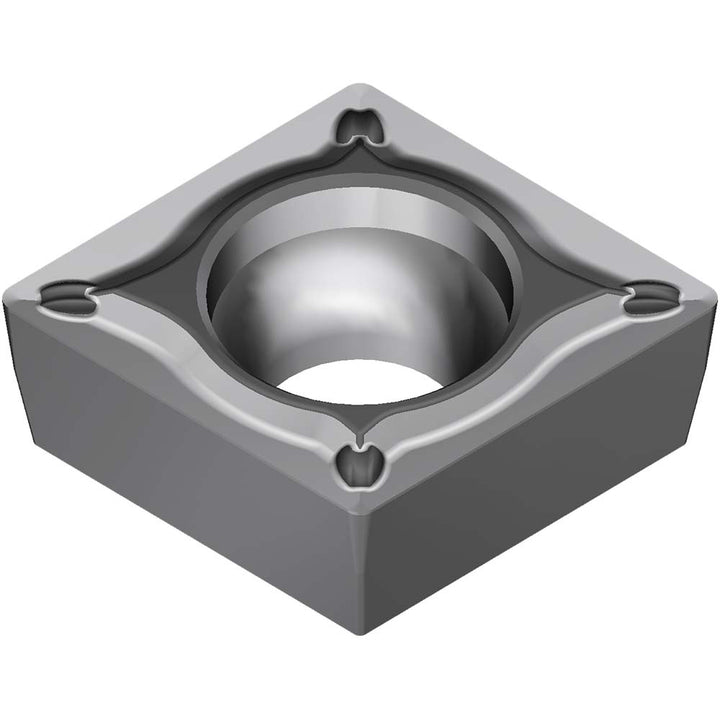

CPMT09T308N-SU Solid Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7W40
MFR# 19P7W40ISO/ANSI# CPMT09T308N-SUSeries CPMT
$11.16List $14.07
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC8025P
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 19P7W40 is a CPMT09T308N-SU solid carbide indexable insert, grade AC8025P, Coated coated. Suited for steel.
Specifications
Ansi codeCPMT32.52ESU
Chip breakerESU
Clearance codeP
Coating finishCoated
Coating processCVD
Corner radius in1/32
Full radiusNo
Hole diameter0.1732
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.5
Insert styleCPMT
Insert thickness in3/8
Iso codeCPMT09T308N-SU
Manufacturer gradeAC8025P
Multi use toolNo
Primary workpiece materialSteel
RakePositive
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeM
