Sumitomo

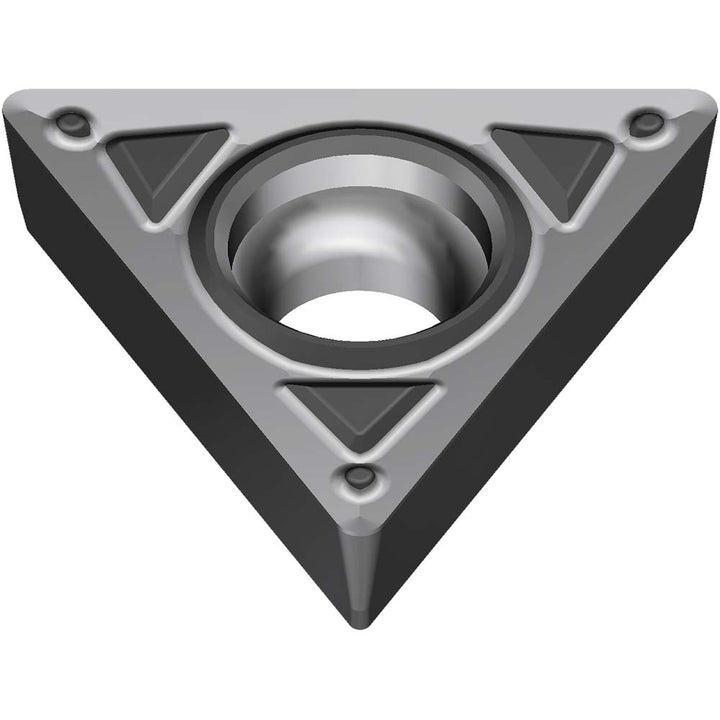

TCMT16T304N-SK Solid Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7W9J
MFR# 19P7W9JISO/ANSI# TCMT16T304N-SKSeries TC
$14.55List $18.66
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeAC8025P
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 19P7W9J is a TCMT16T304N-SK solid carbide indexable insert, grade AC8025P, Coated coated. Suited for steel.
Specifications
Ansi codeTCMT32.51ENK
Chip breakerENK
Clearance codeC
Coating finishCoated
Coating processCVD
Corner radius in1/64
Full radiusNo
Hole diameter0.1693
Included angle60.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6496
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code32.51
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT16T304N-SK
Manufacturer gradeAC8025P
Multi use toolNo
Primary workpiece materialSteel
RakePositive
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeM
