Sumitomo

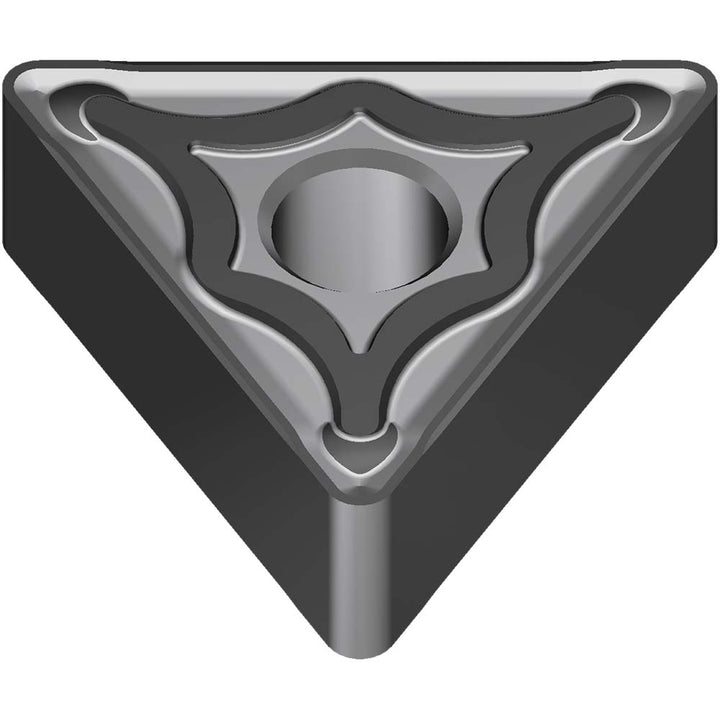

TNMG160304N-UX Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7WAQ
MFR# 19P7WAQISO/ANSI# TNMG160304N-UXSeries TN
$8.36List $10.72
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeAC8025P
MaterialCarbide
CoatingCoated
Description
The Sumitomo 19P7WAQ is a TNMG160304N-UX carbide indexable insert, grade AC8025P, Coated coated. Suited for steel.
Specifications
Chip breakerEUX
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/64
Full radiusNo
Hole diameter0.1500
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6496
Insert materialCarbide
Insert shapeTriangle
Insert size code321
Insert styleTNMG
Insert thickness in1/8
Iso codeTNMG160304N-UX
Manufacturer gradeAC8025P
Multi use toolNo
Primary workpiece materialSteel
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
