Sumitomo

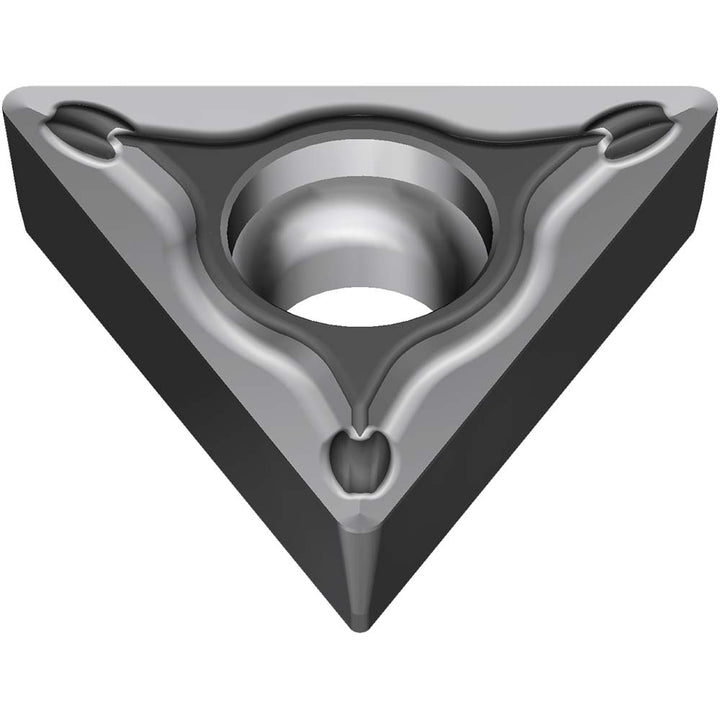

TPMT16T304N-SU Carbide Insert, Grade AC8025P, Absotech - Sumitomo 19P7WCN
MFR# 19P7WCNISO/ANSI# TPMT16T304Series TPMT
$15.34List $19.33
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeAC8025P
MaterialCarbide
CoatingAbsotech
Description
The Sumitomo 19P7WCN is a TPMT16T304N-SU carbide indexable insert, grade AC8025P, Absotech coated. Suited for steel.
Specifications
Ansi insert codeTPMT32.51
Ansi size code32.51
Chip breakerESU
Chip breaker operationFinishing; Light Machining
Clearance codeP
Coating finishAbsotech
Coating processCVD
Corner radius in1/64
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code32.5
Insert styleTPMT
Insert thickness in5/32
Iso codeTPMT16T304N-SU
Iso insert codeTPMT16T304
Iso size code16T304
Manufacturer gradeAC8025P
Multi use toolNo
Primary workpiece materialSteel
RakePositive
Relief angle11
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
