Sumitomo

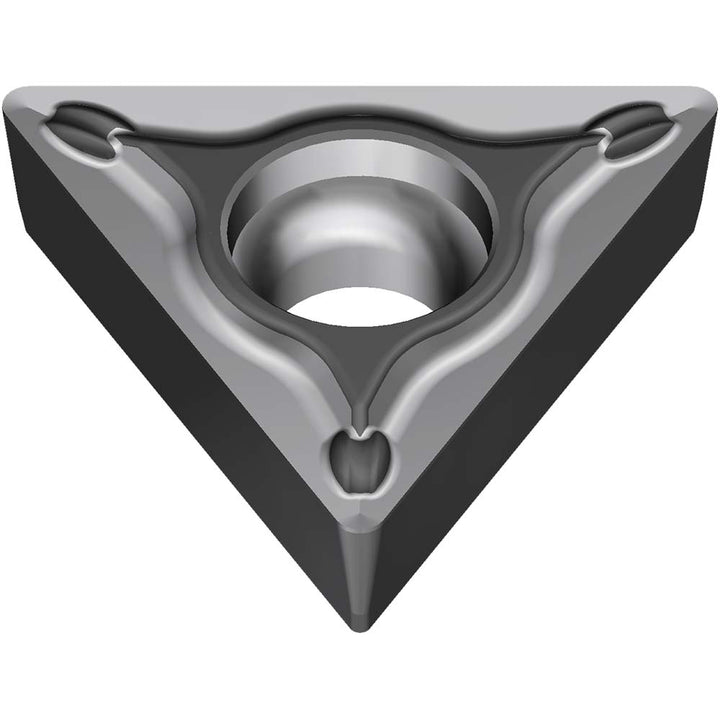

TPMT16T308N-SU Carbide Insert, Grade AC8025P, Absotech - Sumitomo 19P7WCV
MFR# 19P7WCVISO/ANSI# TPMT16T308Series TPMT
$12.48List $15.72
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeAC8025P
MaterialCarbide
CoatingAbsotech
Description
The Sumitomo 19P7WCV is a TPMT16T308N-SU carbide indexable insert, grade AC8025P, Absotech coated. Suited for steel.
Specifications
Ansi insert codeTPMT32.52
Ansi size code32.52
Chip breakerESU
Chip breaker operationFinishing; Light Machining
Clearance codeP
Coating finishAbsotech
Coating processCVD
Corner radius in1/32
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code32.5
Insert styleTPMT
Insert thickness in5/32
Iso codeTPMT16T308N-SU
Iso insert codeTPMT16T308
Iso size code16T308
Manufacturer gradeAC8025P
Multi use toolNo
Primary workpiece materialSteel
RakePositive
Relief angle11
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
