Sumitomo

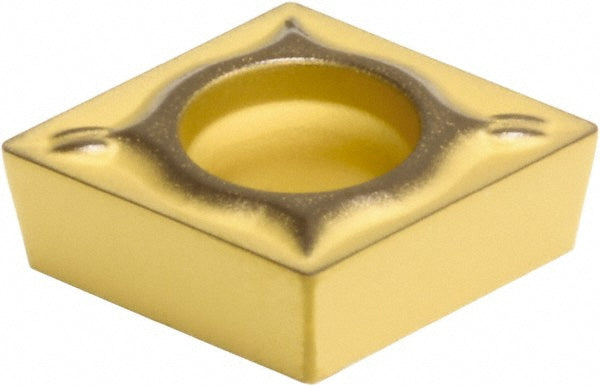

CCMT060204N-SU Solid Carbide Insert, Grade AC610M, Al2O3 - Sumitomo 19PVBPC
MFR# 19PVBPCISO/ANSI# CCMT060204N-SUSeries CC
$8.47List $10.87
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeAC610M
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19PVBPC is a CCMT060204N-SU solid carbide indexable insert, grade AC610M, Al2O3 coated.
Specifications
Ansi codeCCMT21.51ESU
Chip breakerESU
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius in1/64
Hole diameter0.1100
Included angle80.0
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2520
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code21.51
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060204N-SU
Manufacturer gradeAC610M
RakePositive
Rake angle8
Relief angle7
Secondary workpiece materialStainless Steel
StandardsANSI; ISO 13399
Tolerance codeM
