Sumitomo

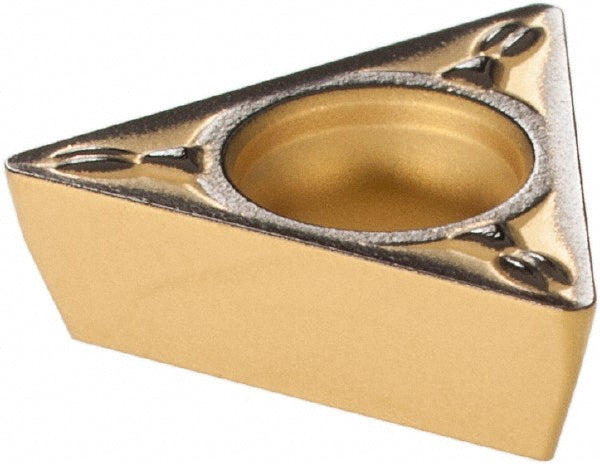

TPMT110304N-SU Solid Carbide Insert, Grade AC630M, Al2O3 - Sumitomo 19PW108
MFR# 19PW108ISO/ANSI# TPMT110304N-SUSeries TPMT
$9.47List $12.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeAC630M
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19PW108 is a TPMT110304N-SU solid carbide indexable insert, grade AC630M, Al2O3 coated. Suited for stainless steel, steel, superalloy.
Specifications
Ansi codeTPMT221ESU
Chip breakerESU
Clearance codeP
Coating finishAl2O3
Coating processCVD
Corner radius in1/64
Hole diameter0.1300
Included angle60.0
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code221
Insert styleTPMT
Insert thickness in1/8
Iso codeTPMT110304N-SU
Manufacturer gradeAC630M
Primary workpiece materialStainless Steel; Steel; Superalloy
RakePositive
Rake angle8
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeM
