Sumitomo

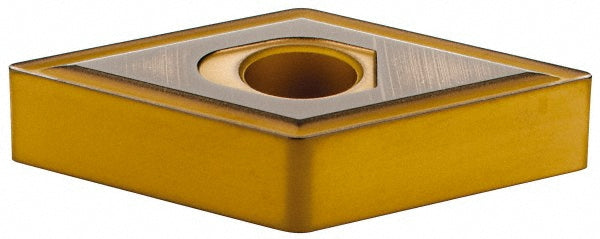

DNMG150404N-EX Solid Carbide Insert, Grade AC630M, Al2O3 - Sumitomo 19PW169
MFR# 19PW169ISO/ANSI# DNMG150404N-EXSeries DN
$17.85List $22.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC630M
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19PW169 is a DNMG150404N-EX solid carbide indexable insert, grade AC630M, Al2O3 coated.
Specifications
Ansi codeDNMG431EEX
Chip breakerEEX
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/64
Hole diameter0.2031
Included angle55.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150404N-EX
Manufacturer gradeAC630M
Material gradeC5; C5A; C6; C7
RakePositive
Rake angle16
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO 13399
Tolerance codeM
