Sumitomo

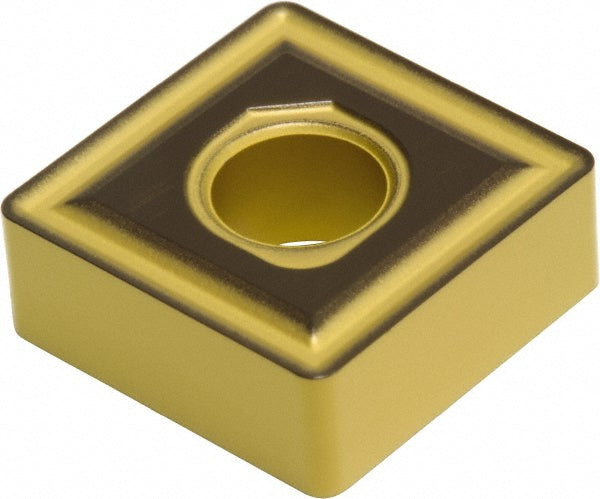

SNMG120412N-EX Solid Carbide Insert, Grade AC630M, Al2O3 - Sumitomo 19PW176
MFR# 19PW176ISO/ANSI# SNMG120412N-EXSeries SN
$11.96List $15.34
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeAC630M
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19PW176 is a SNMG120412N-EX solid carbide indexable insert, grade AC630M, Al2O3 coated.
Specifications
Ansi codeSNMG433EEX
Chip breakerEEX
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in3/64
Hole diameter0.2031
Included angle90.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialSolid Carbide
Insert shapeSquare
Insert size code433
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG120412N-EX
Manufacturer gradeAC630M
RakeNegative
Rake angle16
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO 13399
Tolerance codeM
Width in1/2
