Sumitomo

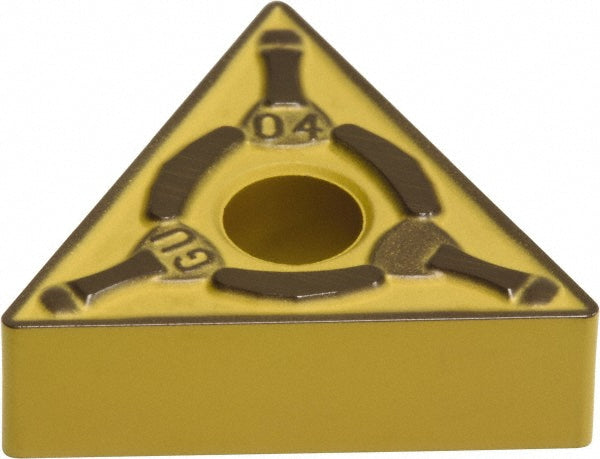

TNMG160404N-GU Solid Carbide Insert, Grade AC630M, Al2O3 - Sumitomo 19PW232
MFR# 19PW232ISO/ANSI# TNMG160404N-GUSeries TN
$9.57List $12.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeAC630M
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19PW232 is a TNMG160404N-GU solid carbide indexable insert, grade AC630M, Al2O3 coated.
Specifications
Ansi codeTNMG331EGU
Chip breakerEGU
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/64
Hole diameter0.1500
Included angle60.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6496
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code331
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG160404N-GU
Manufacturer gradeAC630M
RakePositive
Rake angle7
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO 13399
Tolerance codeM
