Sumitomo

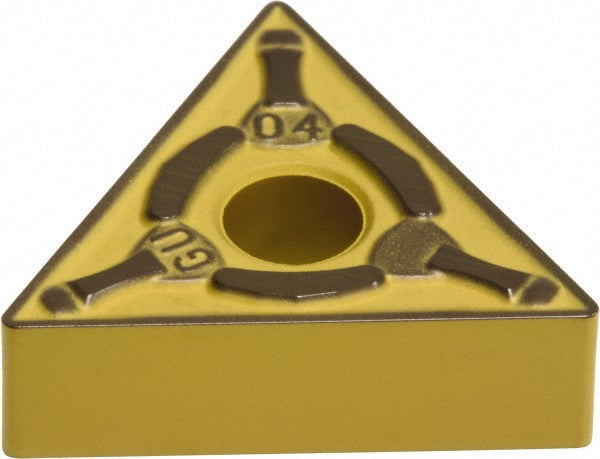

TNMG220408N-GU Solid Carbide Insert, Grade AC630M, Al2O3 - Sumitomo 19PW272
MFR# 19PW272ISO/ANSI# TNMG220408N-GUSeries TN
$13.89List $17.81
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeAC630M
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19PW272 is a TNMG220408N-GU solid carbide indexable insert, grade AC630M, Al2O3 coated.
Specifications
Ansi codeTNMG432EGU
Chip breakerEGU
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.2031
Included angle60.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8661
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code432
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG220408N-GU
Manufacturer gradeAC630M
RakePositive
Rake angle7
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO 13399
Tolerance codeM
