Sumitomo

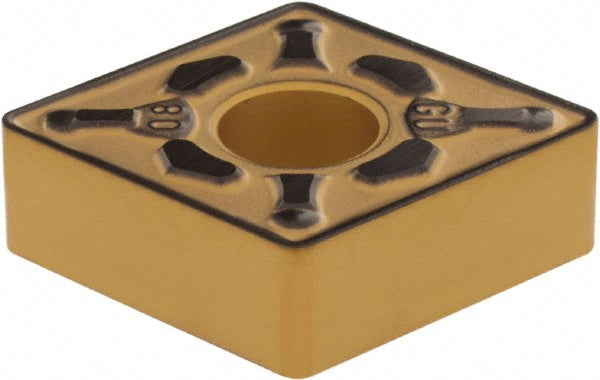

CNMG120408N-GU Carbide Insert, Grade AC630M, Al2O3 - Sumitomo 19PW335
MFR# 19PW335ISO/ANSI# CNMG120408N-GUSeries CN
$12.31List $15.78
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC630M
MaterialCarbide
CoatingAl2O3
Description
The Sumitomo 19PW335 is a CNMG120408N-GU carbide indexable insert, grade AC630M, Al2O3 coated.
Specifications
Chip breakerEGU
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5790
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408N-GU
Manufacturer gradeAC630M
Material gradeC5; C5A; C6; C7
RakePositive
Rake angle7
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO 13399
Tolerance codeM
