Sumitomo
CNMG160612N-MU Solid Carbide Insert, Grade AC630M, Al2O3 - Sumitomo 19PWAFL
MFR# 19PWAFLISO/ANSI# CNMG160612N-MUSeries CN
$20.31List $26.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
GradeAC630M
MaterialSolid Carbide
CoatingAl2O3
Description

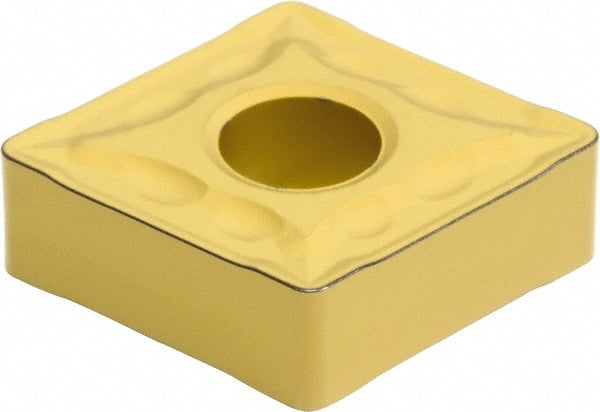

The Sumitomo 19PWAFL is a CNMG160612N-MU solid carbide indexable insert, grade AC630M, Al2O3 coated.
Specifications
Ansi codeCNMG543EMU
Chip breakerEMU
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in3/64
Hole diameter0.2500
Included angle80.0
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6339
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160612N-MU
Manufacturer gradeAC630M
RakePositive
Rake angle4
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO 13399
Tolerance codeM
