Sumitomo

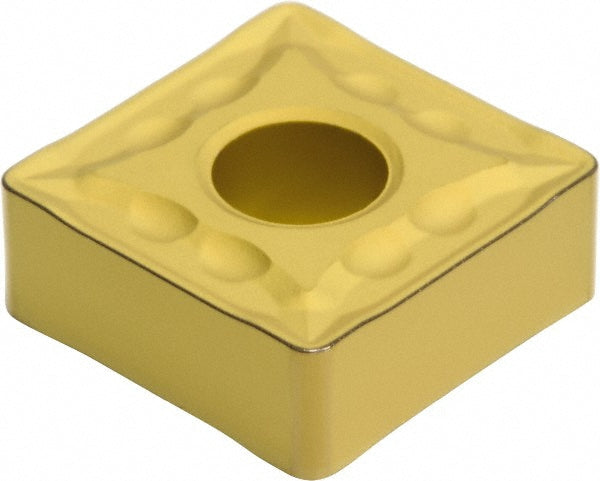

SNMG150612N-MU Solid Carbide Insert, Grade AC630M, Al2O3 - Sumitomo 19PWALJ
MFR# 19PWALJISO/ANSI# SNMG150612N-MUSeries SN
$17.74List $22.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeSquare
GradeAC630M
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19PWALJ is a SNMG150612N-MU solid carbide indexable insert, grade AC630M, Al2O3 coated.
Specifications
Ansi codeSNMG543EMU
Chip breakerEMU
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in3/64
Hole diameter0.2500
Included angle90.0
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in5/8
Insert materialSolid Carbide
Insert shapeSquare
Insert size code543
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG150612N-MU
Manufacturer gradeAC630M
RakePositive
Rake angle4
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO 13399
Tolerance codeM
Width in5/8
