Sumitomo

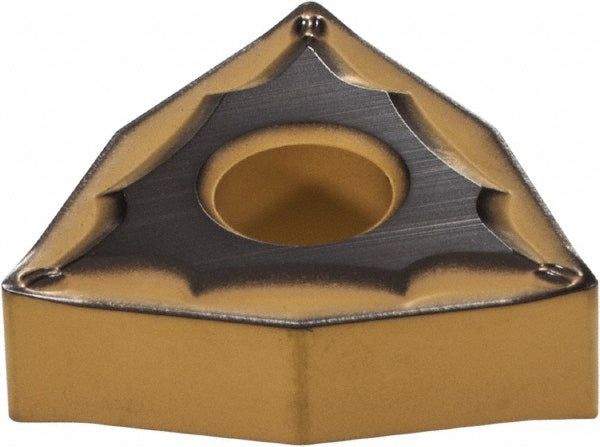

WNMG080404N-SU Carbide Insert, Grade AC630M, Al2O3 - Sumitomo 19PWAPF
MFR# 19PWAPFISO/ANSI# WNMG080404N-SUSeries TN
$14.14List $17.83
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeAC630M
MaterialCarbide
CoatingAl2O3
Description
The Sumitomo 19PWAPF is a WNMG080404N-SU carbide indexable insert, grade AC630M, Al2O3 coated.
Specifications
Chip breakerESU
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/64
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialCarbide
Insert shapeTrigon
Insert size code431
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080404N-SU
Manufacturer gradeAC630M
Material gradeC5; C5A; C6; C7
RakePositive
Rake angle13
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO 13399
Tolerance codeM
