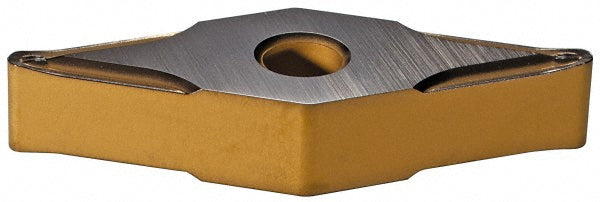

VNMG160408N-SU Solid Carbide Insert, Grade AC630M, Al2O3 - Sumitomo 19PWAPS
MFR# 19PWAPSISO/ANSI# VNMG160408N-SUSeries VN
$18.42List $23.63
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC630M
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19PWAPS is a VNMG160408N-SU solid carbide indexable insert, grade AC630M, Al2O3 coated.
Specifications
Ansi codeVNMG332ESU
Chip breakerESU
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.1500
Included angle35.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160408N-SU
Manufacturer gradeAC630M
Material gradeC5; C5A; C6; C7
RakePositive
Rake angle13
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO 13399
Tolerance codeM
