Sumitomo

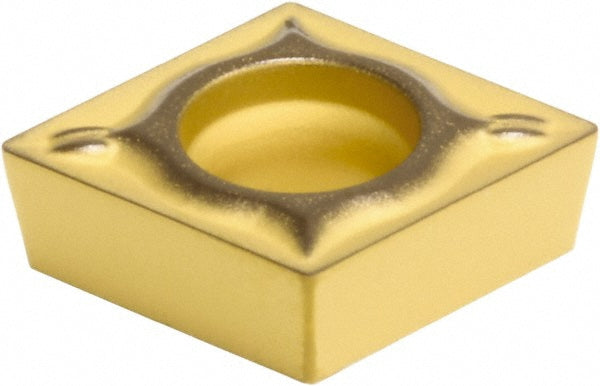

CCMT060208N-SU Solid Carbide Insert, Grade AC630M, Al2O3 - Sumitomo 19PWBPD
MFR# 19PWBPDISO/ANSI# CCMT060208N-SUSeries CC
$9.06List $11.62
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeAC630M
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19PWBPD is a CCMT060208N-SU solid carbide indexable insert, grade AC630M, Al2O3 coated.
Specifications
Ansi codeCCMT21.52ESU
Chip breakerESU
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.1100
Included angle80.0
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2520
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code21.52
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060208N-SU
Manufacturer gradeAC630M
Material gradeC5; C5A; C6; C7
RakePositive
Rake angle8
Relief angle7
Secondary workpiece materialStainless Steel
StandardsANSI; ISO 13399
Tolerance codeM
