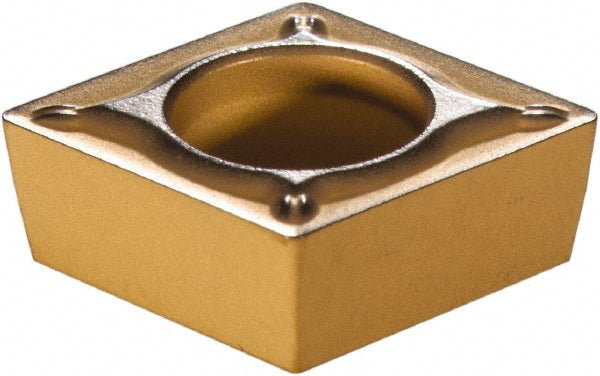

CCMT09T304N-SU Solid Carbide Insert, Grade AC630M, Al2O3 - Sumitomo 19PWBPE
MFR# 19PWBPEISO/ANSI# CCMT09T304N-SUSeries CC
$11.20List $14.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC630M
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19PWBPE is a CCMT09T304N-SU solid carbide indexable insert, grade AC630M, Al2O3 coated.
Specifications
Ansi codeCCMT32.51ESU
Chip breakerESU
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius in1/64
Hole diameter0.1732
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.51
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T304N-SU
Manufacturer gradeAC630M
Material gradeC5; C5A; C6; C7
RakePositive
Rake angle8
Relief angle7
Secondary workpiece materialStainless Steel
StandardsANSI; ISO 13399
Tolerance codeM
