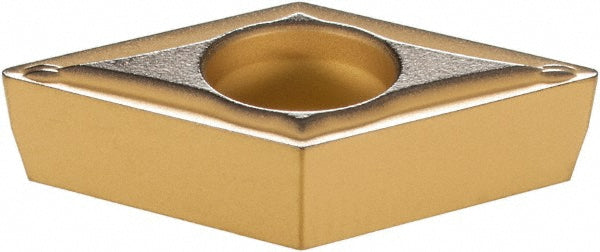

DCMT11T304N-SU Carbide Insert, Grade AC630M, Al2O3 - Sumitomo 19PWBPK

Sumitomo

DCMT11T304N-SU Carbide Insert, Grade AC630M, Al2O3 - Sumitomo 19PWBPK

MFR# 19PWBPKISO/ANSI# DCMT11T304Series DC

$16.41List $21.04 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeAC630M
MaterialCarbide
CoatingAl2O3

Description

The Sumitomo 19PWBPK is a DCMT11T304N-SU carbide indexable insert, grade AC630M, Al2O3 coated.

Specifications

Ansi insert codeDCMT32.51
Ansi size code32.51
Chip breakerESU
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius in1/64
Grade characteristicsStainless Steel (M) - Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4567
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code32.51
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T304N-SU
Iso insert codeDCMT11T304
Iso size code11T304
Manufacturer gradeAC630M
RakePositive
Rake angle8
Relief angle7
Secondary workpiece materialStainless Steel
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
