Sumitomo

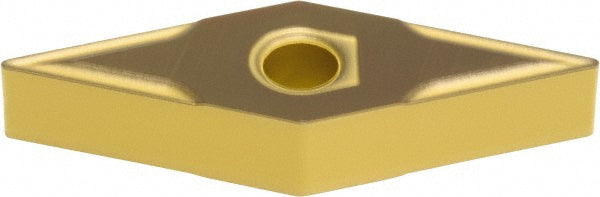

VNMG160408N-EX Solid Carbide Insert, Grade AC630M, Al2O3 - Sumitomo 19PWBRN
MFR# 19PWBRNISO/ANSI# VNMG160408N-EXSeries VN
$18.42List $23.63
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC630M
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19PWBRN is a VNMG160408N-EX solid carbide indexable insert, grade AC630M, Al2O3 coated.
Specifications
Ansi codeVNMG332EEX
Chip breakerEEX
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.1500
Included angle35.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160408N-EX
Manufacturer gradeAC630M
RakePositive
Rake angle16
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO 13399
Tolerance codeM
