Sumitomo

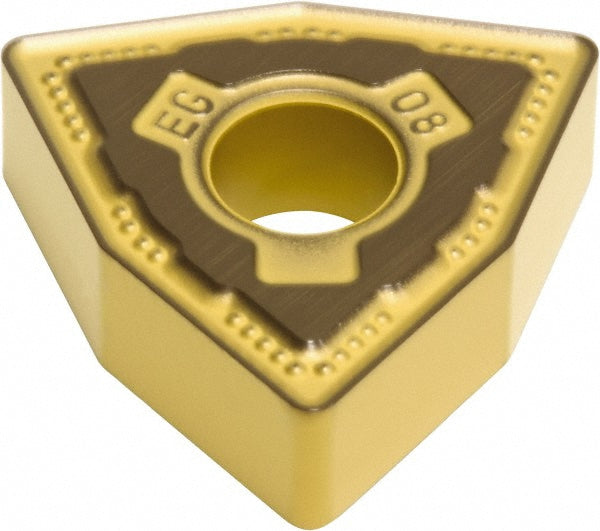

WNMG080408N-EG Solid Carbide Insert, Grade AC630M, Al2O3 - Sumitomo 19PWCGK
MFR# 19PWCGKISO/ANSI# WNMG080408N-EGSeries TN
$12.31List $15.78
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeAC630M
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19PWCGK is a WNMG080408N-EG solid carbide indexable insert, grade AC630M, Al2O3 coated.
Specifications
Ansi codeWNMG432EEG
Chip breakerEEG
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408N-EG
Manufacturer gradeAC630M
RakeNeutral
Rake angle0
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO 13399
Tolerance codeM
