Sumitomo

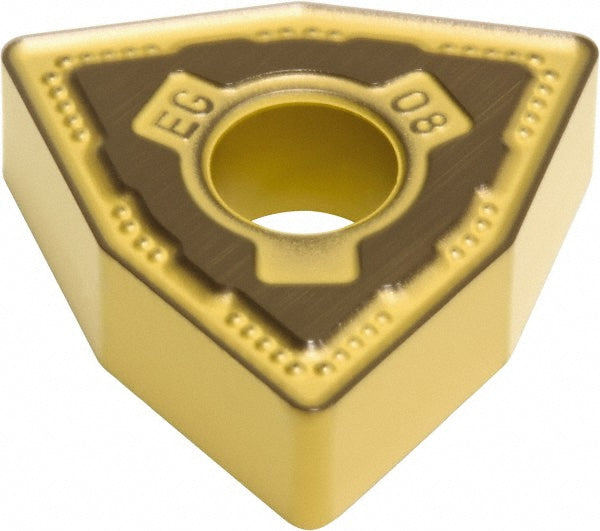

WNMG080412N-EG Solid Carbide Insert, Grade AC630M, Al2O3 - Sumitomo 19PWCGL
MFR# 19PWCGLISO/ANSI# WNMG080412N-EGSeries TN
$11.50List $14.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeAC630M
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19PWCGL is a WNMG080412N-EG solid carbide indexable insert, grade AC630M, Al2O3 coated.
Specifications
Ansi codeWNMG433EEG
Chip breakerEEG
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in3/64
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code433
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080412N-EG
Manufacturer gradeAC630M
RakeNeutral
Rake angle0
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO 13399
Tolerance codeM
