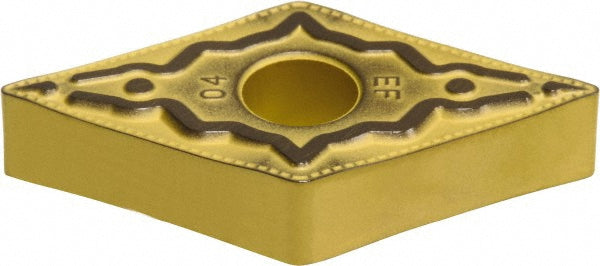

DNMG150408N-EF Carbide Insert, Grade AC630M, Al2O3 - Sumitomo 19PWCGR

Sumitomo

DNMG150408N-EF Carbide Insert, Grade AC630M, Al2O3 - Sumitomo 19PWCGR

MFR# 19PWCGRISO/ANSI# DNMG150408Series DN

$16.69List $21.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeAC630M
MaterialCarbide
CoatingAl2O3

Description

The Sumitomo 19PWCGR is a DNMG150408N-EF carbide indexable insert, grade AC630M, Al2O3 coated.

Specifications

Ansi insert codeDNMG432
Ansi size code432
Chip breakerEEF
Chip breaker operationFinishing
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Grade characteristicsStainless Steel (M) - Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408N-EF
Iso insert codeDNMG150408
Iso size code150408
Manufacturer gradeAC630M
RakeNeutral
Rake angle0
Relief angle0
Secondary workpiece materialStainless Steel
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
