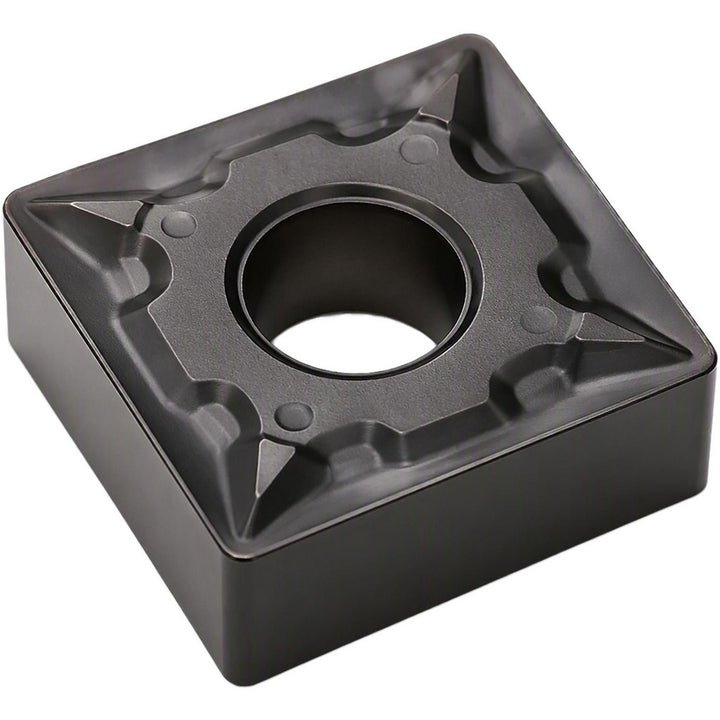

CNMG190612N-MX Carbide Insert, Grade YB100, CVD Coated - Sumitomo 19QKANJ

Sumitomo

CNMG190612N-MX Carbide Insert, Grade YB100, CVD Coated - Sumitomo 19QKANJ

MFR# 19QKANJISO/ANSI# CNMG190612N-MXSeries CN

$30.41List $38.32 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeDiamond
GradeYB100
MaterialCarbide

Description

The Sumitomo 19QKANJ is a CNMG190612N-MX (ANSI CNMG643EMX) carbide turning insert in grade YB100 with a CVD coating. It is an 80° diamond, negative-rake, neutral-hand insert with a 3/4" inscribed circle, 1/4" thickness, 3/64" (0.0469") corner radius and a 0.3126" hole, held by pin or clamp. The EMX chip breaker suits medium machining and roughing, and the grade is listed for steel (P) and cast iron (K). Sold per insert in multiples of 10.

Specifications

Ansi codeCNMG643EMX
Chip breakerEMX
Chip breaker operationMedium Machining; Roughing
Clearance codeN
Coating processCVD
Corner radius in3/64
Country of originJapan
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.3126
Included angle80.0
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.7598
Insert materialCarbide
Insert shapeDiamond
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG190612N-MX
Iso size code190612
Manufacturer gradeYB100
RakeNegative
Rake angle15
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
