Sumitomo

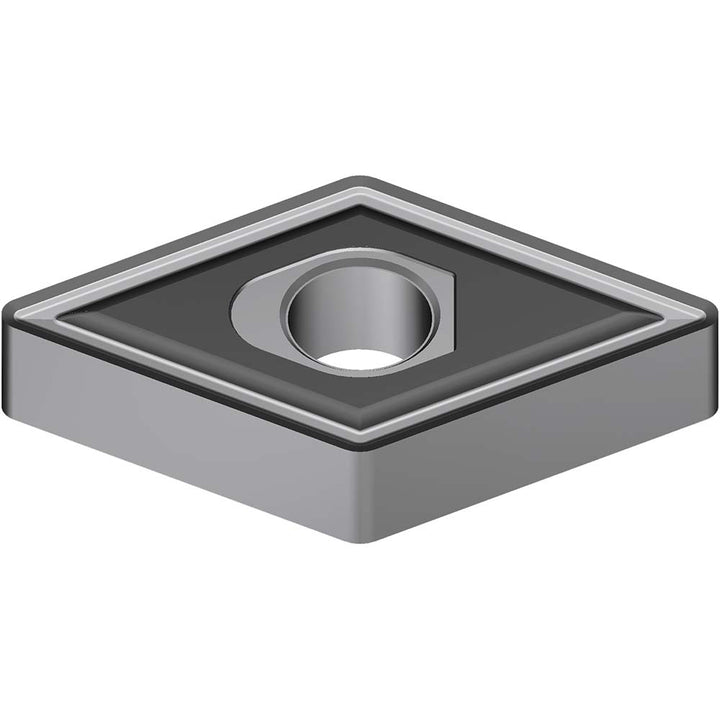

DNMG150408N-EX Carbide Insert, Grade AC6020M, Absotech Platinum - Sumitomo 19R5170
MFR# 19R5170ISO/ANSI# DNMG150408Cat# DNMG432EEXAC6020MSeries DN
$16.69List $21.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeAC6020M
MaterialCarbide
CoatingAbsotech Platinum
Description
The Sumitomo 19R5170 is a DNMG150408N-EX carbide indexable insert, grade AC6020M, Absotech Platinum coated. Suited for stainless steel.
Specifications
Ansi insert codeDNMG432
Ansi size code432
Chip breakerEEX
Chip breaker operationLight Machining; Medium Machining
Clearance codeN
Coating finishAbsotech Platinum
Coating processCVD
Corner radius in1/32
Full radiusNo
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.6102
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408N-EX
Iso insert codeDNMG150408
Iso size code150408
Manufacturers catalog numberDNMG432EEXAC6020M
Manufacturer gradeAC6020M
Material gradeM20
Multi use toolYes
Primary workpiece materialStainless Steel
RakeNegative
Rake angle16
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
